Samsung 55" Touch Screens

Achieve compelling customer engagement through all-in-one touchscreen displays

Samsung’s PMF-BC displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. The displays allow consumers to seamlessly navigate a range of relevant content without interference from surrounding light or environmental conditions. The integrated, powerful Tizen operating system grants PMF-BC users exciting capabilities to deliver rich, engaging content with minimal operational burden required.

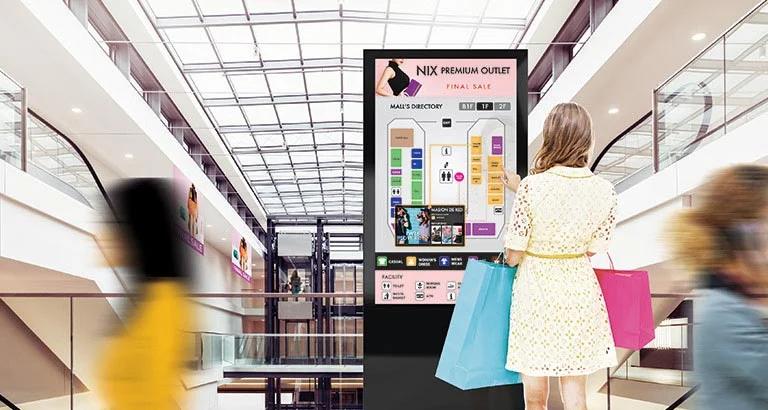

Samsung 55” touch screen

Samsung 55” touch screen

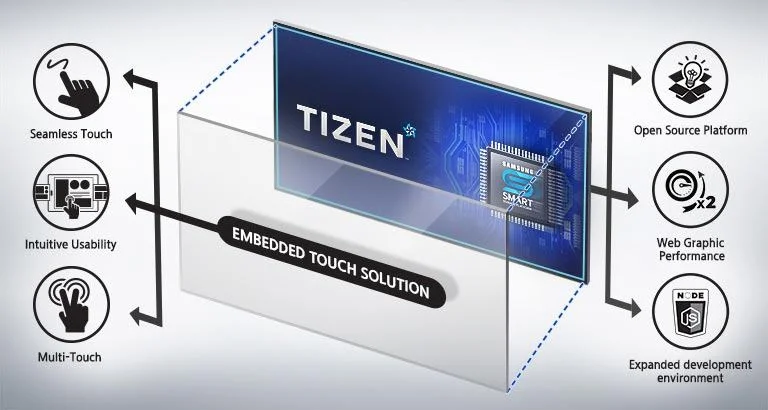

Powerful, Convenient Management through an All-in-One Composition

Samsung’s PMF-BC displays condense several vital signage components – including a powerful operating system, embedded media player and capacitive touch technology – into an all-in-one solution. Backed by the versatile Tizen OS, the PMF-BC displays deliver dynamic, touch-enabled content without requiring external PCs or devices. An intuitive interface further drives quick and convenient navigation across essential applications and content.



Comfortable, Multi-Point Capacitive Touch Communication

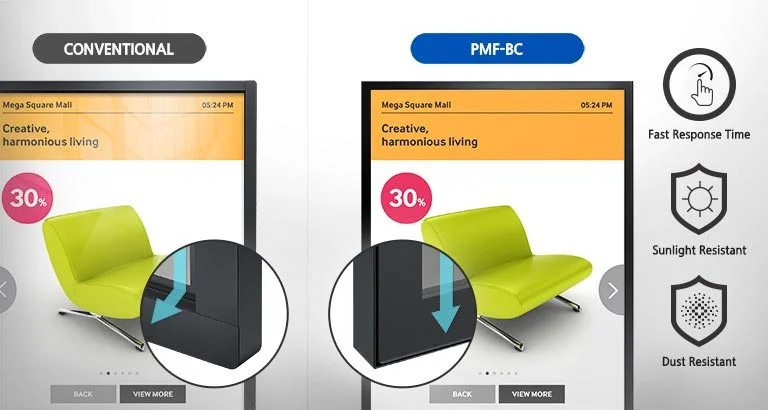

Through capacitive touch technology and a user-friendly design, Samsung’s PMF-BC displays foster a comfortable, easy-to-navigate digital writing experience. The interactive displays can accommodate up to 10 unique touch points while maintaining the smooth, familiar feel of analog board or pen-and-paper writing, and without interference from dust, sunlight or other natural variables.

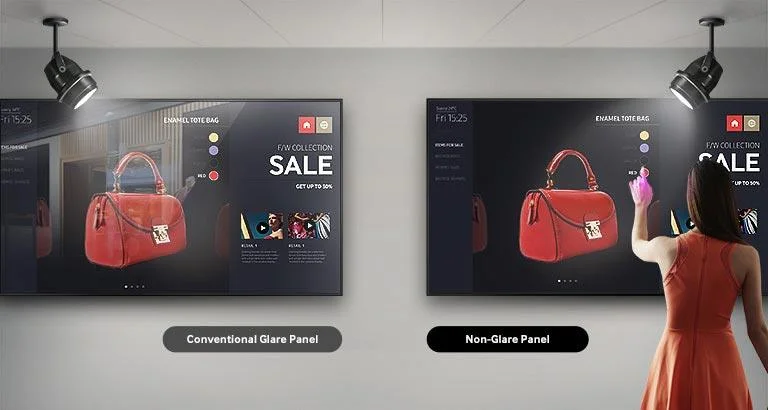

Brilliant, Glare-Free Visual Quality

Featuring elevated contrast ratios and 400nit brightness, the PMF-BC displays showcase highly visible content even in environments subject to variable lighting conditions. A non-glare, glass touch front panel further reduces the impact of natural and ambient light interference and guarantees consistent readability, while a complementary anti-haze coating drives smooth, uninterrupted on-screen navigation.

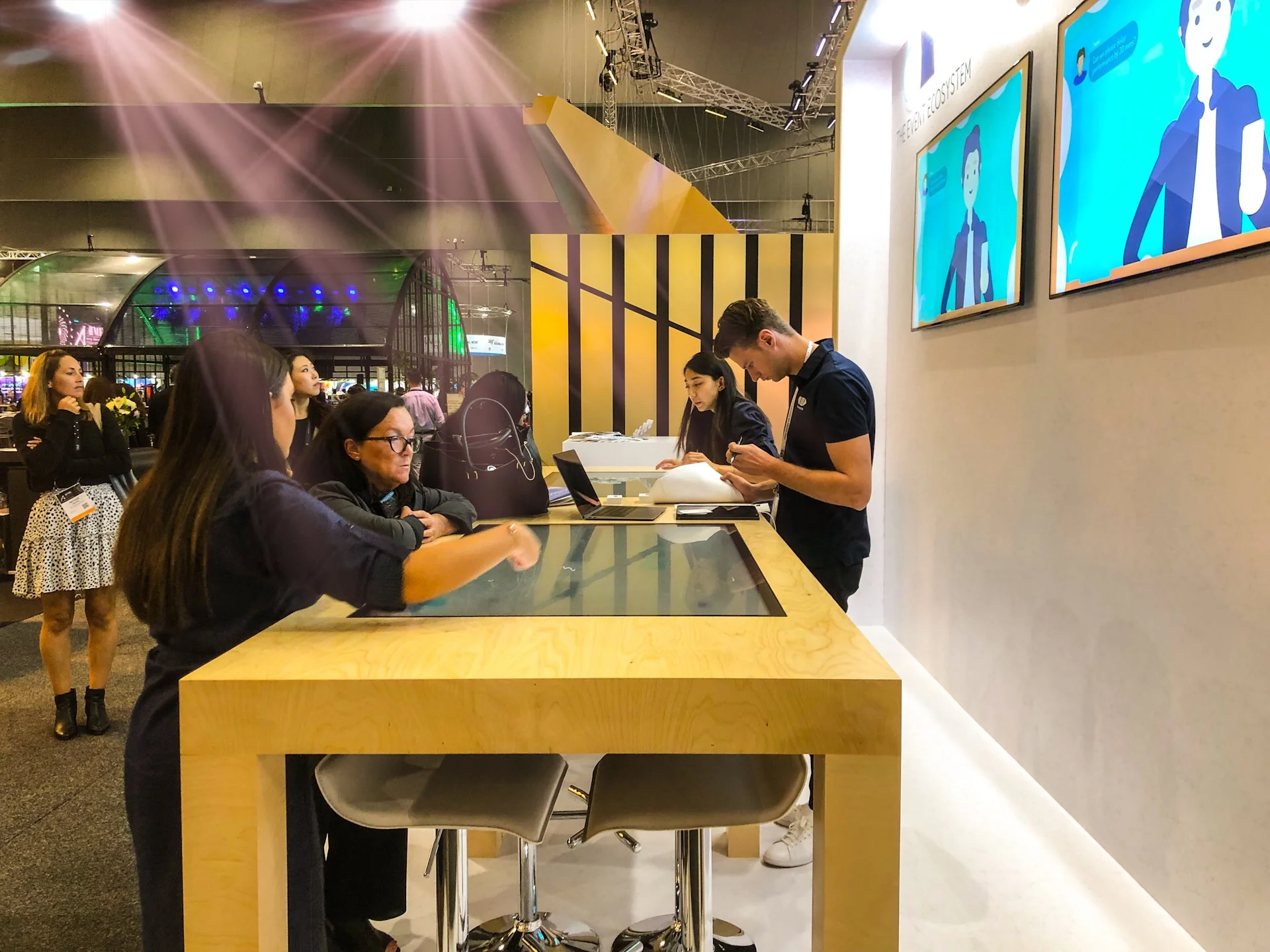

Acta app 1.jpg

Specs

Panel

  • Diagonal Size55"

  • Type60Hz E-LED BLU

  • Resolution1920*1080 (Full HD)

  • Pixel Pitch(mm)0.630(H) x 0.630(V)

  • Active Display Area(mm)1209.6(H) x 680.4(V)

  • Brightness(Typ.)400 nit

  • Contrast Ratio4000:1

  • Viewing Angle(H/V)178:178

  • Response Time(G-to-G)8ms

  • Display Colors10bit Dithering - 1.07Billion

  • Color Gamut72%

  • Operation Hour24/7

  • Haze25% (Panel), 10% (Glass)
